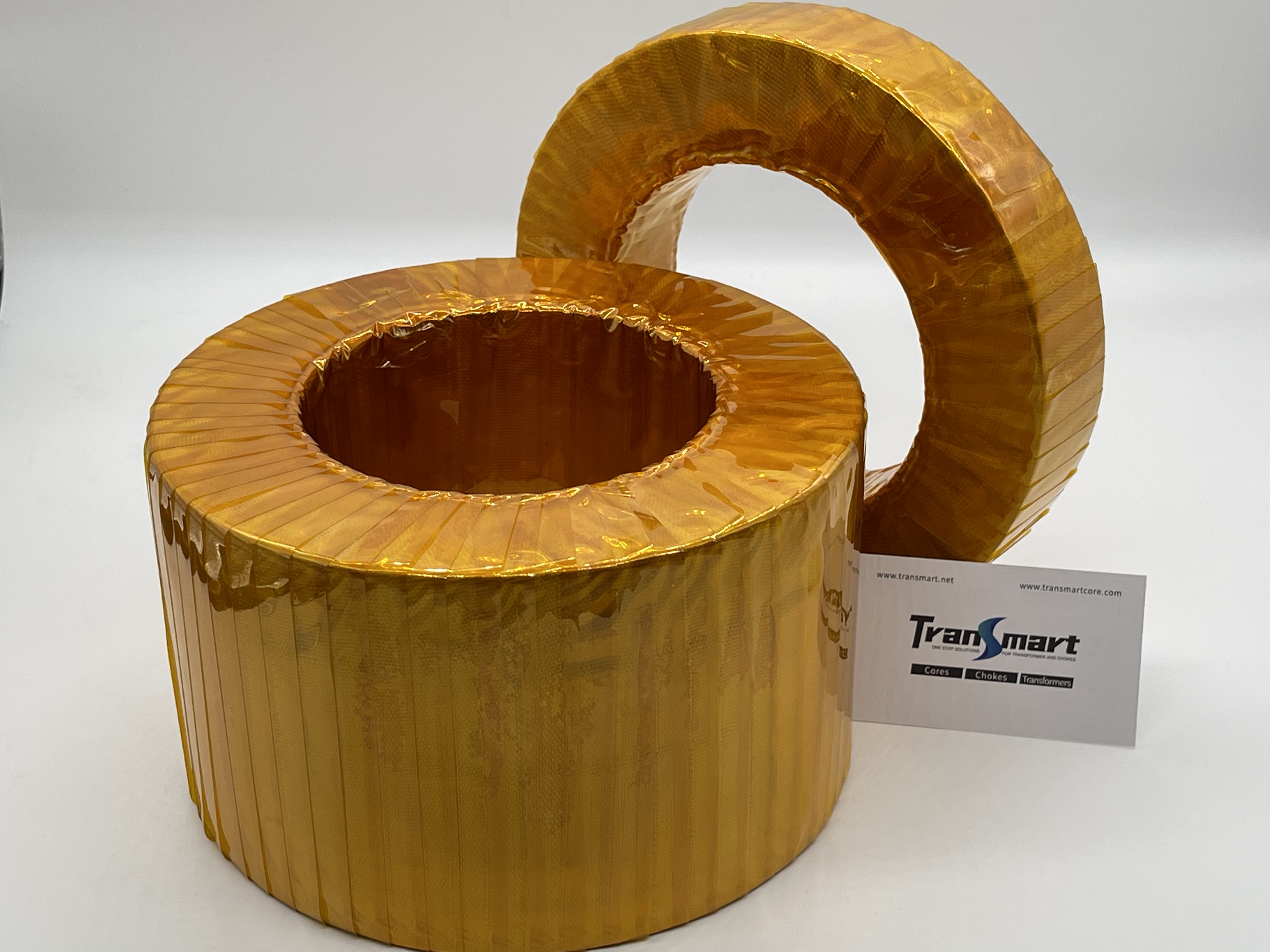

TRANSMART Nanocrystalline Core for High Frequency Transformer

Product Information

During the entire process of using nanocrystalline magnetic rings (ultra microcrystalline iron cores) in inverter power supplies, there have been some problems such as noise, ductility, consistency, etc. These problems have already been gradually addressed. High power inverters and switching power supplies have developed relatively mature and are widely used in various fields. They have the advantages of small size, high efficiency, energy conservation and environmental protection. At present, it has been widely used in industries such as inverter welding machines, power systems, electroplating process electrolysis power supplies, induction heating equipment, charging power supplies, etc., and there will be even greater improvements in the next two years.

Features of Nanocrystalline Core:

High saturation magnetic induction intensity

High magnetic conductivity

High permeability

Low coercivity

Low remanence

Low core loss

Good temperature stability

Compact size

Benefits of Nanocrystalline Core

The use of a Nanocrystalline Core in various electrical applications presents numerous benefits that significantly enhance performance and efficiency. One of the primary advantages lies in its superior magnetic properties, which result from the unique microstructure of nanocrystalline materials characterized by their fine grain size typically ranging between 1 to 100 nanometers. This exceptional structure contributes to reduced hysteresis losses, allowing for higher operational frequencies and lower energy wastage during magnetic cycling. Additionally, the Nanocrystalline Core exhibits remarkable saturation magnetization levels compared to traditional ferrite cores, enabling it to efficiently manage high-power applications while maintaining compact designs. Furthermore, these cores demonstrate excellent thermal stability and resilience against demagnetization at elevated temperatures, making them ideal for demanding environments where durability is paramount. The reduction in weight and volume without sacrificing efficiency also positions the Nanocrystalline Core as a leading choice for designers aiming to optimize system layouts in modern electronic devices such as transformers and inductors. Consequently, its integration into power electronics can lead to improved overall system reliability and longevity while adhering to stringent energy-saving regulations.

Everything you want to know about nanocrystalline cores for current transformers, please contact us immediately if you are interested in.
