M3 Carlite Tape Wound Core Products | TRANSMART

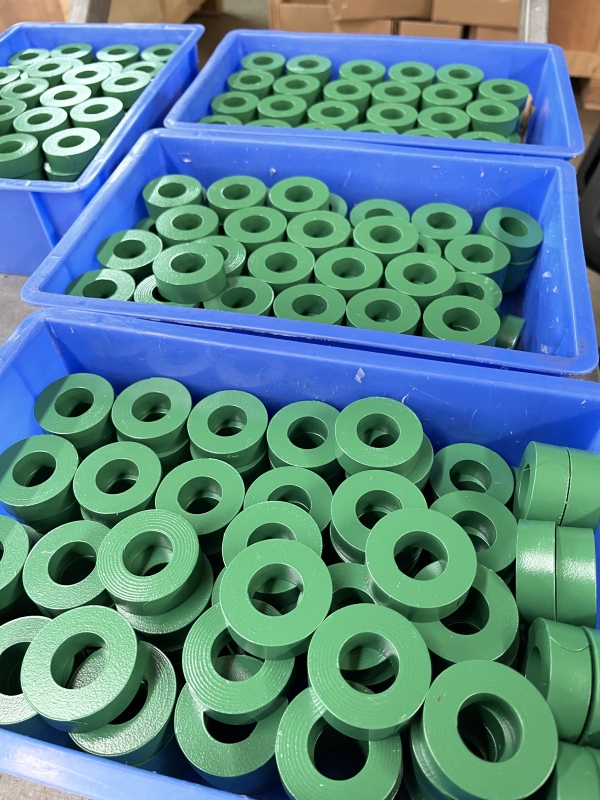

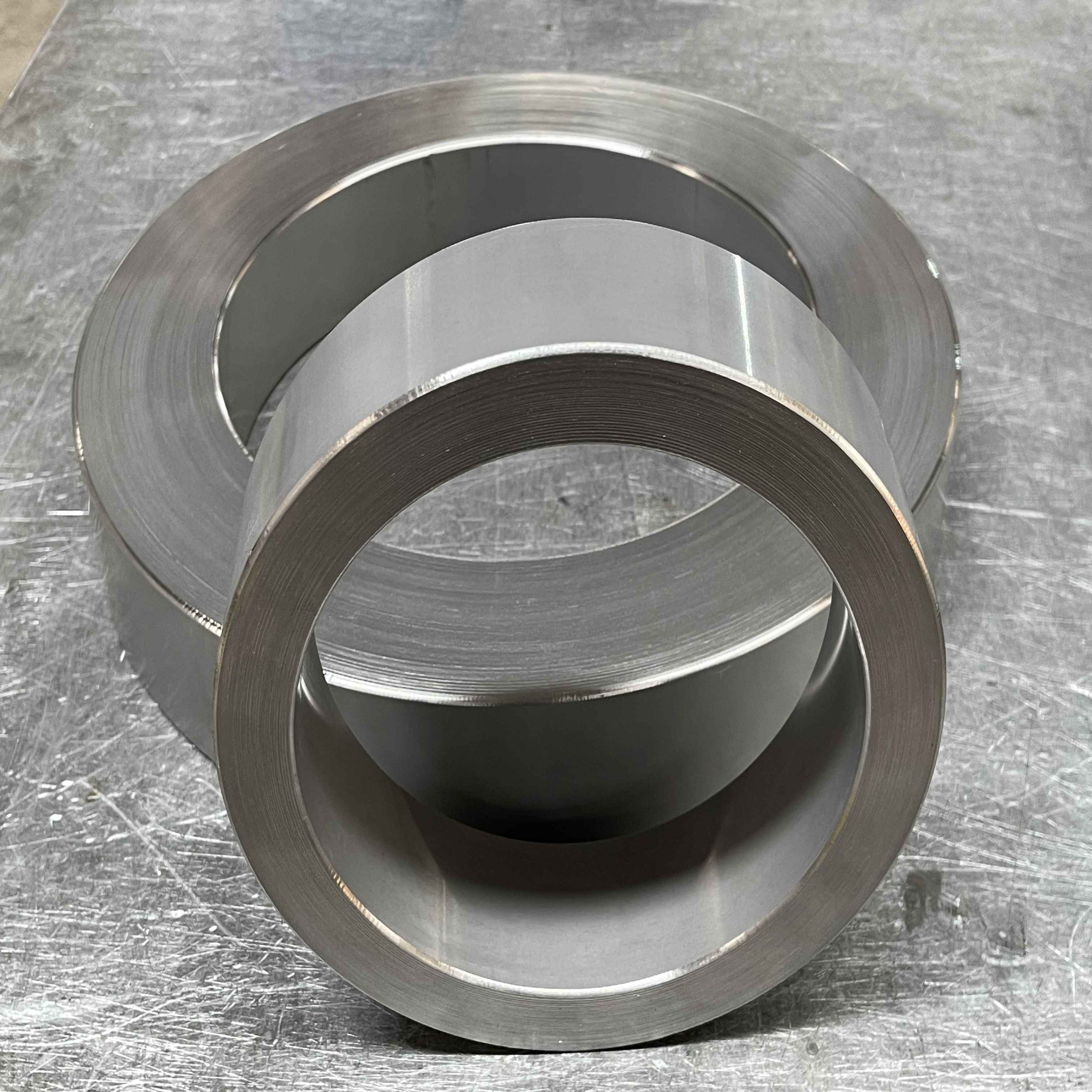

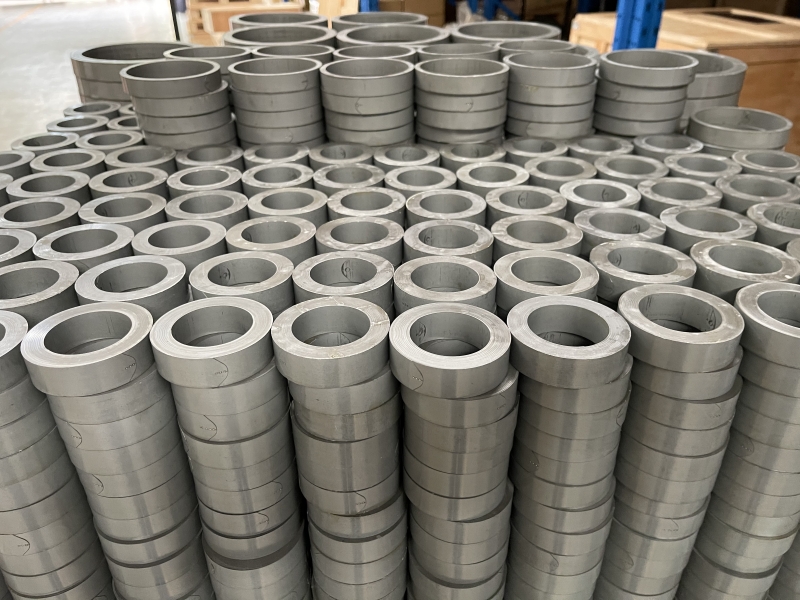

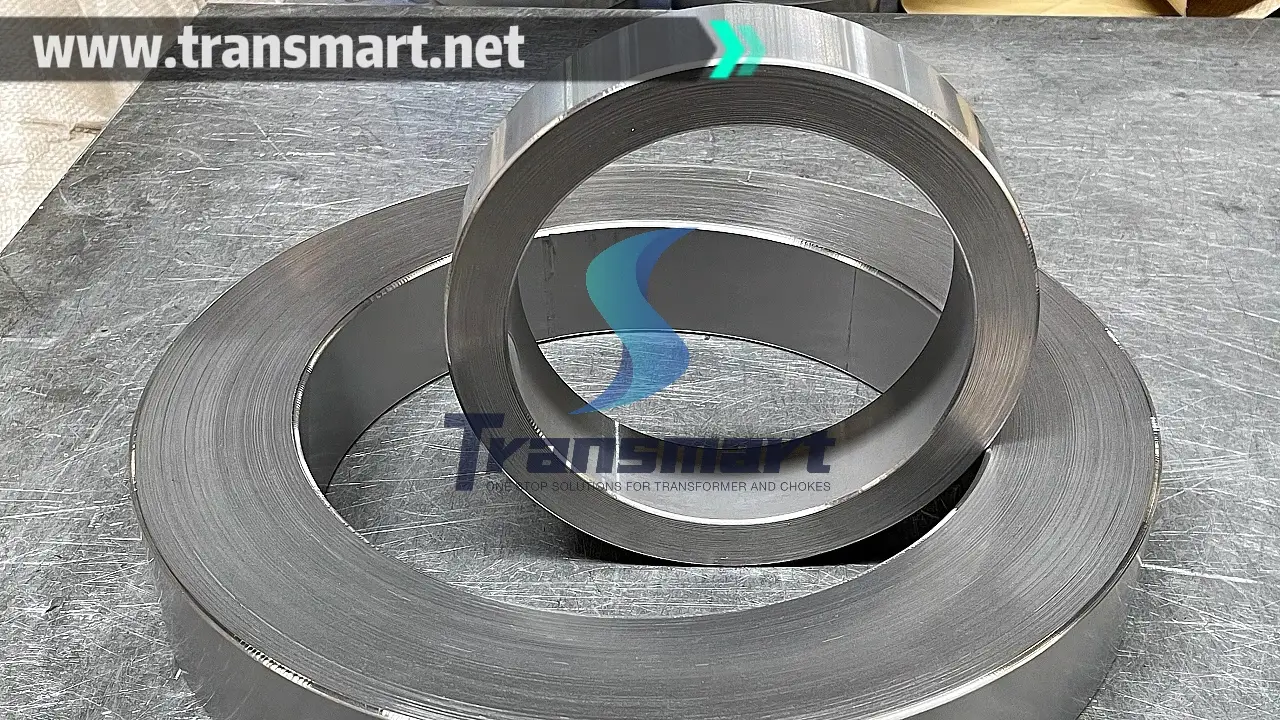

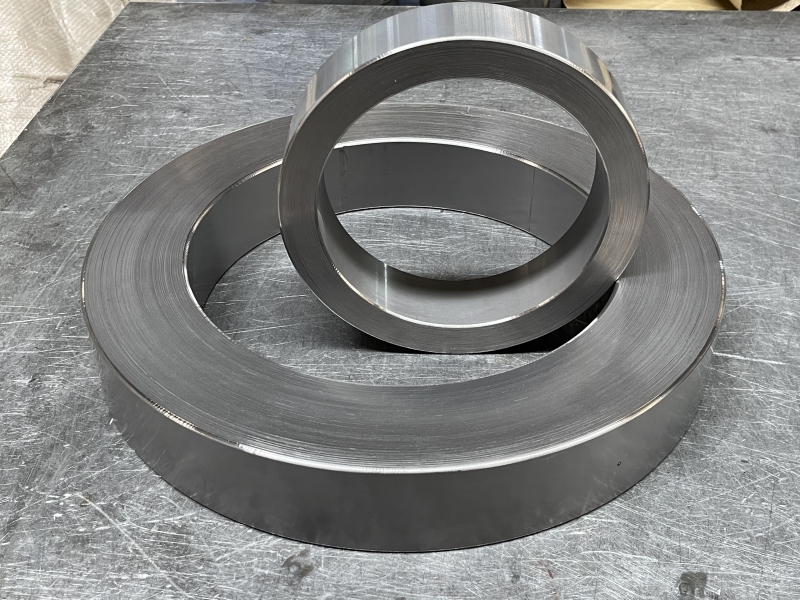

Tape wound toroidal cores made from soft magnetic materials such as silicon steel, nanocrystalline, and amorphous alloys. These cores made by winding thin strips of grain oriented silicon steel tape or alloy tape around a core fore. The tape is tightly wound to create a toroidal shape, providing a closed magnetic circuit. The alloy consists of the tiny crystalline grains and disordered atomic structure, resulting in high magnetic permeability and low core loss.
These cores are widely used in electrical applications. Let's explore their features, and applications:
Features:
1. High Efficiency: All three soft magnetic materials offer low core losses, enabling efficient energy transfer and reduced power losses.
2. Compact and Lightweight: The toroidal shape of the core provides a compact design, suitable for space-constrained applications. The use of thin tape also results in lightweight cores.
3. High Magnetic Flux Density: Silicon steel, nanocrystalline, and amorphous cores can handle high magnetic flux densities, allowing for high power density designs.
4. Low Electromagnetic Interference (EMI): The toroidal shape reduces electromagnetic radiation and minimizes EMI.
Applications:
1. Transformers: Tape wound toroidal cores made from these soft magnetic materials are commonly used in power transformers, audio transformers, and instrument transformers. Their high efficiency and low losses make them ideal for power distribution and voltage regulation.
2. Inductors: These cores find applications in inductors for filtering, energy storage, and power factor correction. The compact design and high magnetic flux density make them suitable for high-frequency applications.
3. Current Sensors: Tape wound toroidal cores are used in current transformers for measuring and monitoring electrical currents. The high accuracy and frequency response of these cores make them suitable for power quality monitoring and energy management systems.
In summary, tape wound toroidal cores made from soft magnetic materials like silicon steel, nanocrystalline, and amorphous alloys offer high efficiency, compact design, and low losses. They find applications in transformers, inductors, and current sensors, playing a crucial role in various electrical systems.
Please visit our website for further information about our company.
Homepage: www.transmart.net
FOLLOW ME:
Check my website: https://www.transmartcore.com
Facebook: https://www.facebook.com/Transmart.Ind.Ltd
Youtube: https://www.youtube.com/@TransmartIndustrialLtd
LinkedIn: https://www.linkedin.com/company/transmart-industrial-limited/
Instagram: https://www.instagram.com/transmart307/
Pinterest: https://www.pinterest.com/transmart307/
X(Twitter): https://x.com/TRANSMART307
Tiktok: https://www.tiktok.com/@tst180307
Contact us today to learn more.
Email: sales@transmart.net
Whatsapp: +86 136 2868 9494
Everything you wanted to know please contact us immediately if you are interested in.
Product Information
Company Advantages
Various types magnetic materials available: Silion Steels, Nanocrystalline ribbon, Amorphous Ribbon, Mumetal
20 years experiences in magnetic cores manufacturing and exporting.
About TRANSMART
We are a group company located in Foshan, China, with two manufacturing plants, coving a production area more than 70,000Sqare meters. We specialized in a broad range of tape wound cores in Amorphous metal materials, Nanocrystalline alloys, Silicon electrical steels, and Mu metal Nickel alloys, for a wide variety of applications including solar inverters, new energy vehicles, instrument transformers, current sensors, common mode chokes, custom power transformers. We also manufacture high-performance components using our high-quality cores made in-house. One of the key factors to the success of TRANSMART is focusing on basic raw materials research and development. Our ability to tailor the composition and specific heat treatments according to our know-how enables us to design alloys with unique properties for specific customer needs. Transmart is one of the few companies worldwide that have mastered the rapid solidification process where alloys are being produced as a thin strip to its final thickness of typically 16 to 30 μm, for applications in photovoltaic inverter, medium frequency transformer, common mode chokes. Our factories are certified to ISO9001, ISO14001, IATF16949.
